70_MC_NEUTRALIZED_GAIN_CONTROLLED_AMPLIFIER

Published:2009/7/16 2:18:00 Author:Jessie | From:SeekIC

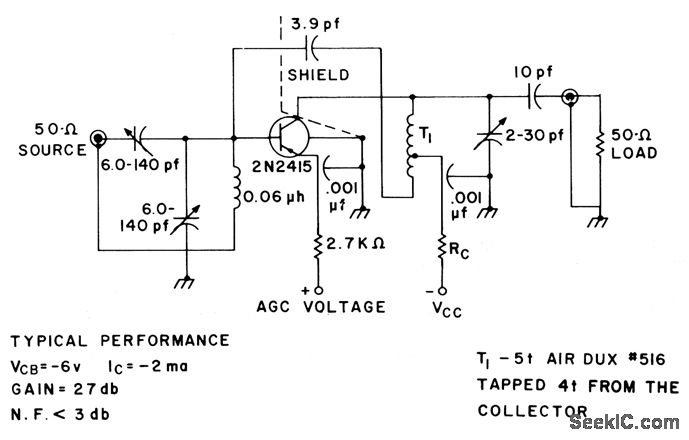

Gain is 27 db, with typical noise figure below 3 db. RC for reverse gain control is 0 ohms, and for forward gain control is 1,000 ohms. Reverse control range is 35 db, and forward gain control is 47 db.-Texas Instruments Inc., Solid-State Communications, McGraw-Hill, N.Y., 1966, p 215.
