6 Zone Alarm

Published:2012/11/19 1:40:00 Author:muriel | Keyword: 6 Zone, Alarm | From:SeekIC

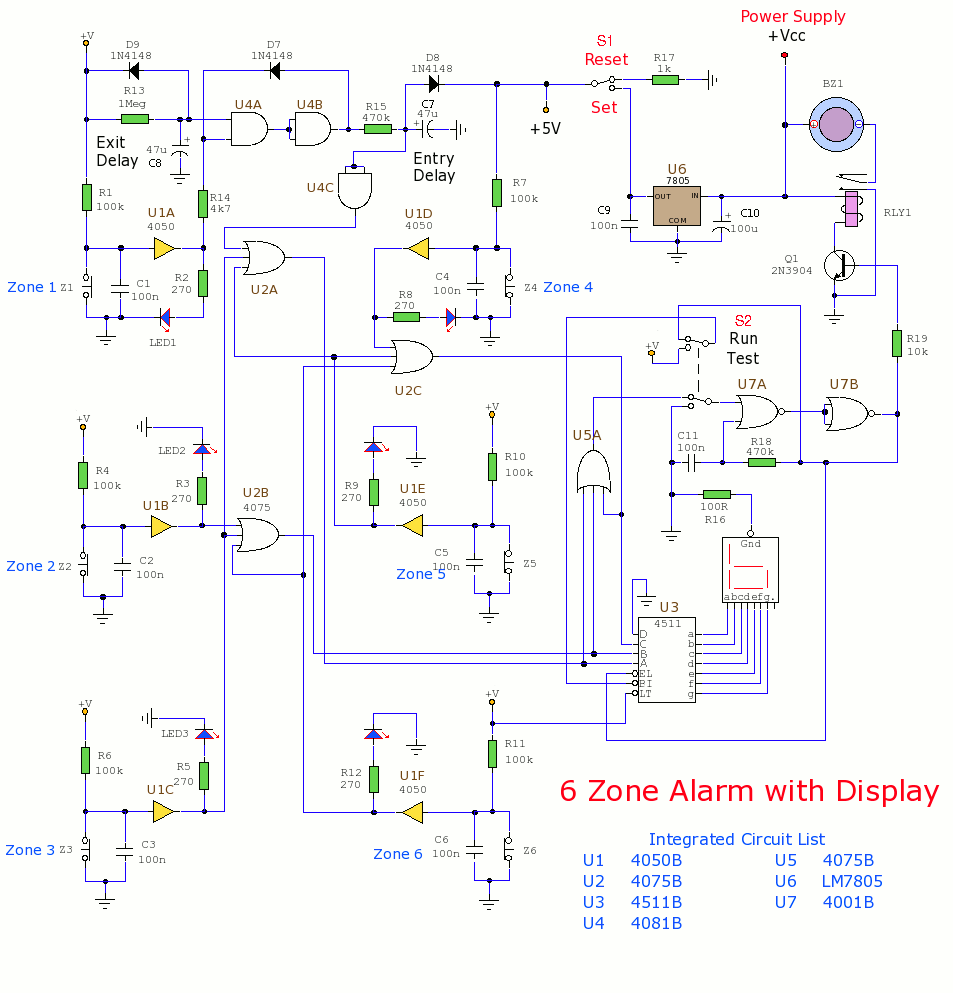

This alarm system has 6 independent zones, 1 timed entry/exit zone, a 7 segment LED display and a test or walkthrough facility. Suitable for a small office or home environment, it can also be adapted to use a combination lock or keypad to set and reset the alarm.
