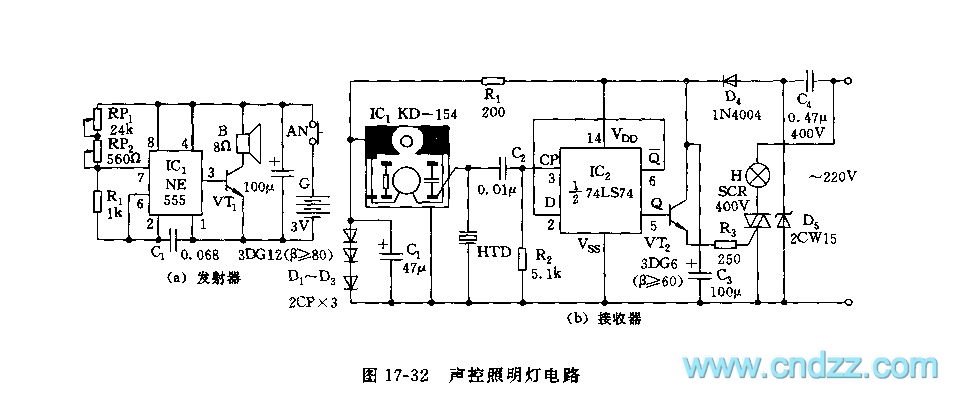

As the figure 17-49 shows, the sound control circuit is composed of two parts: the transmitter and the receiver.
The astable multivibrator is composed of the 555 and RP1,RP2,R1,C1, the oscillation frequency f=1.44/(RP+2R1)C1, the parameters in the figure have the oscillation frequency of about 1~40kHz, the oscillation frequency is adjustable. It drives the high-pitched loudspeaker through VT1. The IC1 of the receiving circuit uses the special whistle integrated circuit KD-154, and the KD-154 is very sensitive to the high voice frequency of 18kHz, when debugging, we adjust RP1 and RP2 to send out the 18kHz audio frequency to drive the KD-154. The HTD is the pickup.
