5082-4350 Automatic amplitude control circuit diagram with optical isolation

Published:2011/5/13 3:28:00 Author:Ecco | Keyword: Automatic amplitude , control circuit, optical isolation | From:SeekIC

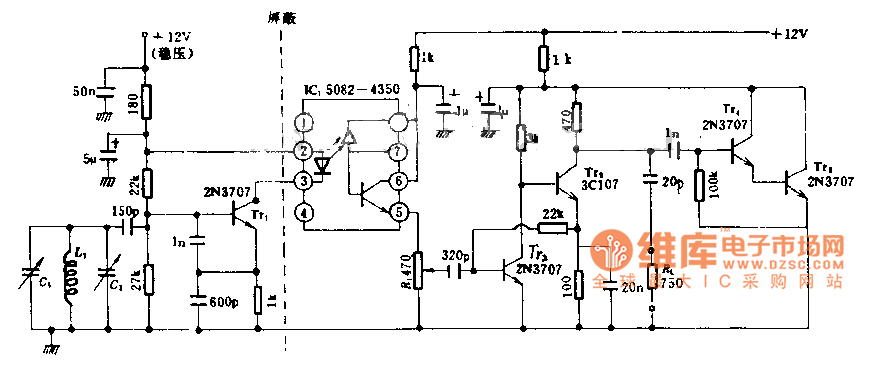

The circuit has a long time frequency stability, temperature changes can be ignored, and it eliminates the pulse load on the frequency, the oscillator uses emitter coupled circuit and 2N3707 low-noise transistor. In addition, it is also given the output amplifier and automatic amplitude control circuit. This circuit is designed for ham using radio equipment.
