500_MICROAMP_AT_30_TO_30000_CPS

Published:2009/7/14 21:47:00 Author:Jessie | From:SeekIC

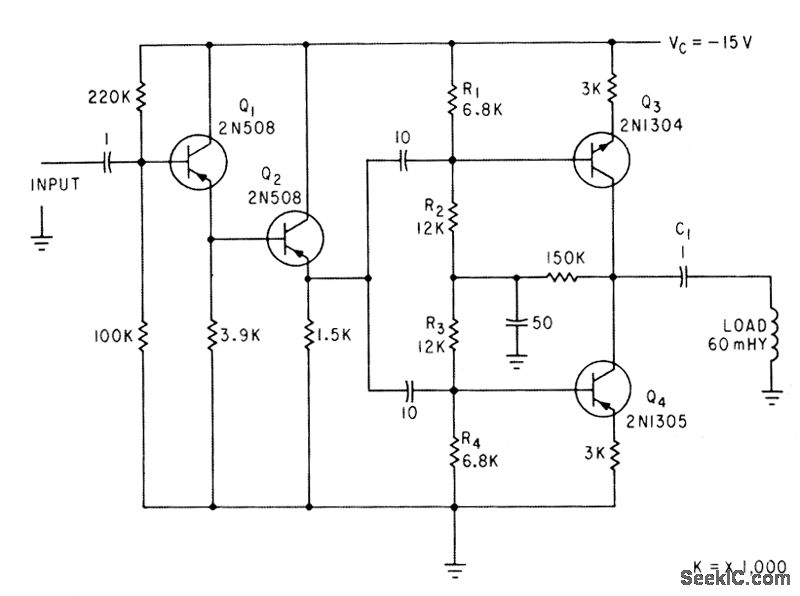

Used to drive 60-mh transducer at constant current without allowing d-c through transducer. Achieved by biasing Q3 and Q4 on all the lime, so each acts as collector resistance for the other.-S. Sokol, Transistor Pair Provides Constant-Current Drive, Electronics, 35:38, p 56.
