455_kHz_MODULATOR

Published:2009/6/23 3:10:00 Author:Jessie | From:SeekIC

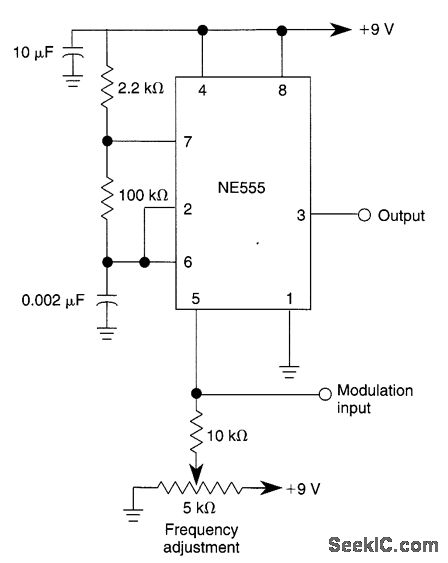

This circuit shows how to frequency-modutate the oscillator using a 555. Oscillator frequency is set with the 5-kΩ potentiometer and the modulation signal is dc-coupled.
