400_CPS_FORK_CONTROL

Published:2009/7/15 22:35:00 Author:Jessie | From:SeekIC

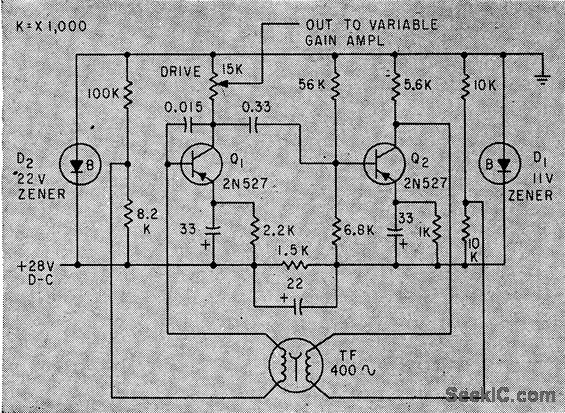

Tuning-fork oscillator gives frequency accuracy of 0.01% for d-c to a-c inverter. Consists essentially of two-stage amplifier, output of which is regeneratively coupled to input through tuning fork.-R. Wileman, Linear Circuits Regulate Solid-State Inverter, Electronics, 33:16, p 61-63.
