3 Zone Duress Alarm

Published:2012/11/19 21:30:00 Author:muriel | Keyword: 3 Zone , Duress Alarm | From:SeekIC

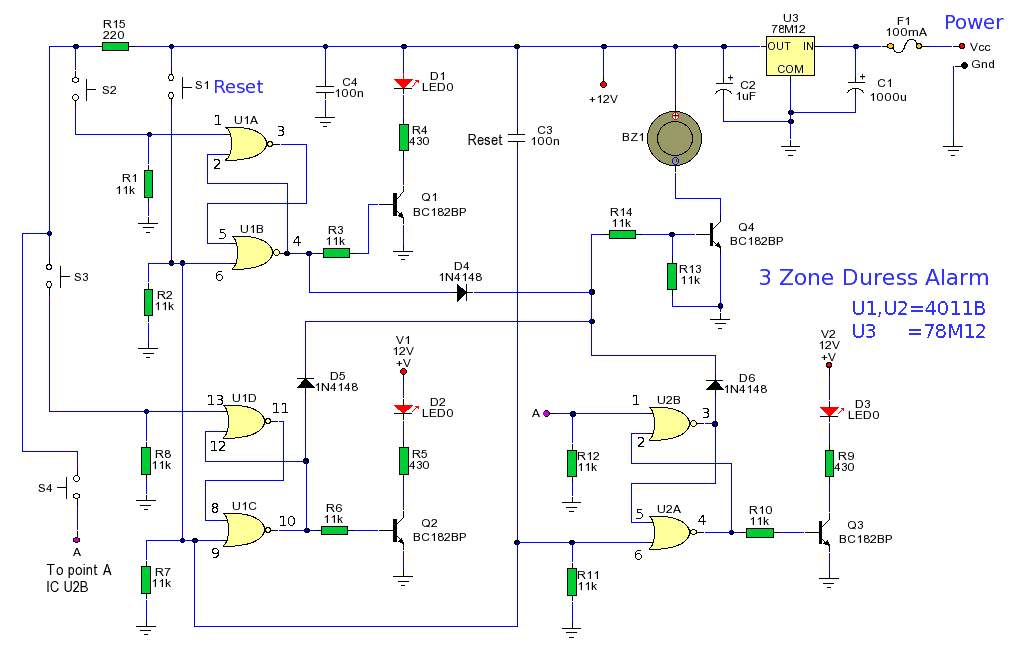

This is a 3 zone alarm for use in high risk areas or possible duress situations. Typical examples being banking or betting booths. The alarm consists of 3 normally open push button switches which can be hidden or in plain view. Once pressed the alarm will latch and a LED will light showing which zone has pressed the alarm.
