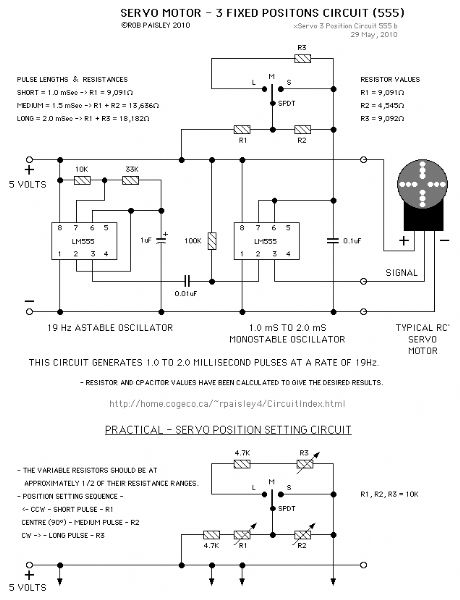

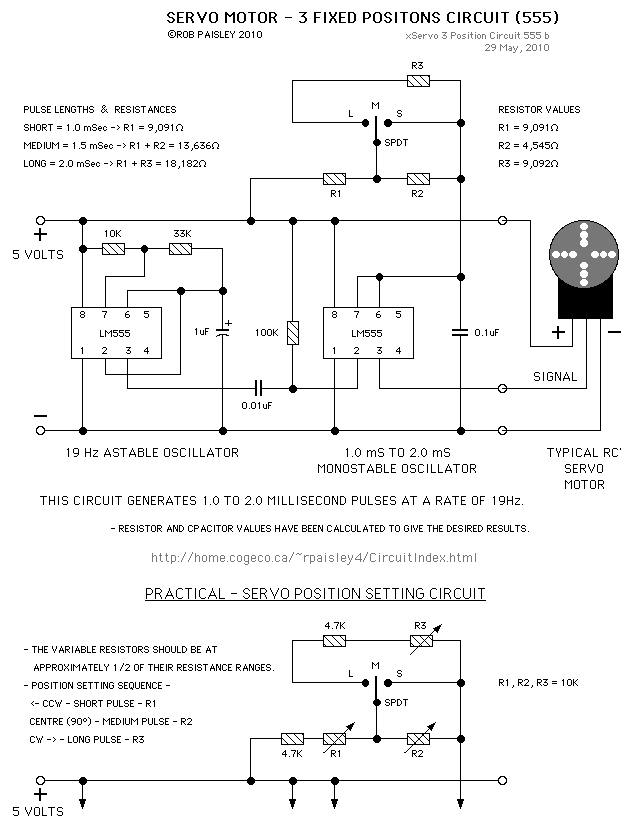

3 Position Servo Driver Circuit (LM555)

Published:2013/6/13 1:41:00 Author:muriel | Keyword: 3 Position , Servo Driver Circuit, LM555 | From:SeekIC

Print this Page | Comments | Reading(3)

To evaluate my
Code:
