360_DEG_SHIFTER

Published:2009/7/20 2:42:00 Author:Jessie | From:SeekIC

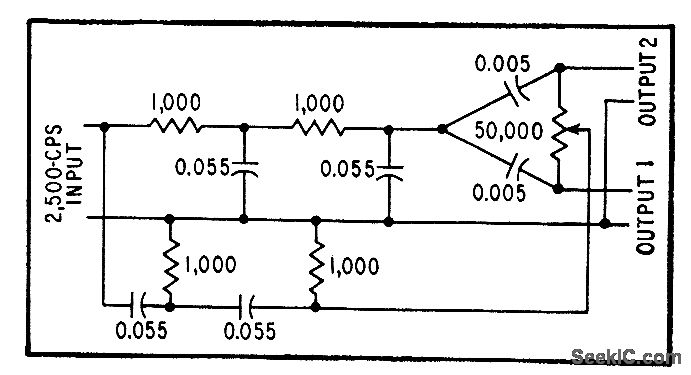

One variable component provides phase difference between outputs that is adjustable from -180 to +180 degrees without substantial change in magnitude, at fixed frequency of 2,500 cps,-W. Bacon, Circuit Shifts Phase 360 Degrees, Electronics, 31:23, p 94-97.
