1_V_600_kHz_SWITCHING_SUPPLY

Published:2009/7/16 21:17:00 Author:Jessie | From:SeekIC

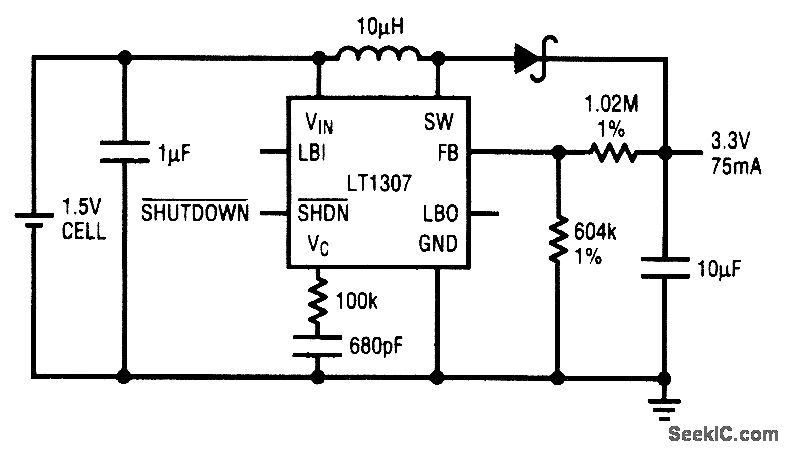

The LT1307 chip will produce 5 V at 40 mA or 3.3 V at 75 mA from a single AA-cell power source. It operates at 600 kHz and uses 60-μA standby current, and it has a low-battery detector.
