1_MILLIMICROSEC_SPARK_GAP_SWITCH

Published:2009/7/24 4:15:00 Author:Jessie | From:SeekIC

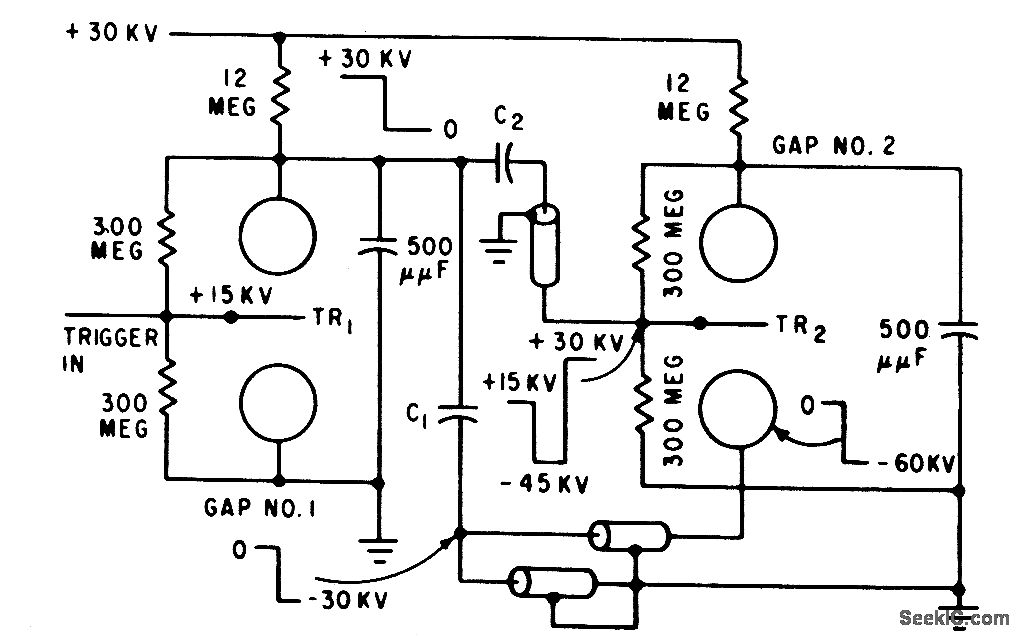

Spark gaps are mounted so ultraviolent to diction from gaps that ire earlier in 111-gap operating sequence irradiate succeeding gaps. Intense radiation front earlier gaps reduces statistical firing delay, or jitter, of succeeding gaps. Breakdown of gap is further speeded by connecting low-potential end of gap to trigger source with short length of cable and blocking capacitor, which in turn is grounded by similar cable.-H. B. McFarlane, Spark Gaps for Fast-High Voltage Switching, Electronics, 32:31, p 72-73.
