1INDUCTION_MOTOR_CONTROL

Published:2009/6/26 1:42:00 Author:May | From:SeekIC

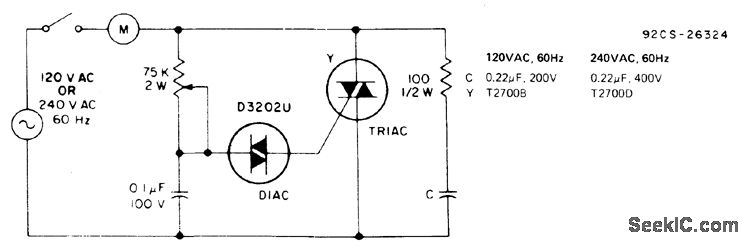

This single time-constant circuit can be used as proportional speed control for induction motors such as shaded pole or permanent split-capacitor motors when the load is fixed. The circuit is best suited to applications which require speed control in the medium to fullpower range.
