19MHz_universal_counter_using_an_Intersil_ICM7226B_40_pin_DIP

Published:2009/7/21 23:22:00 Author:Jessie | From:SeekIC

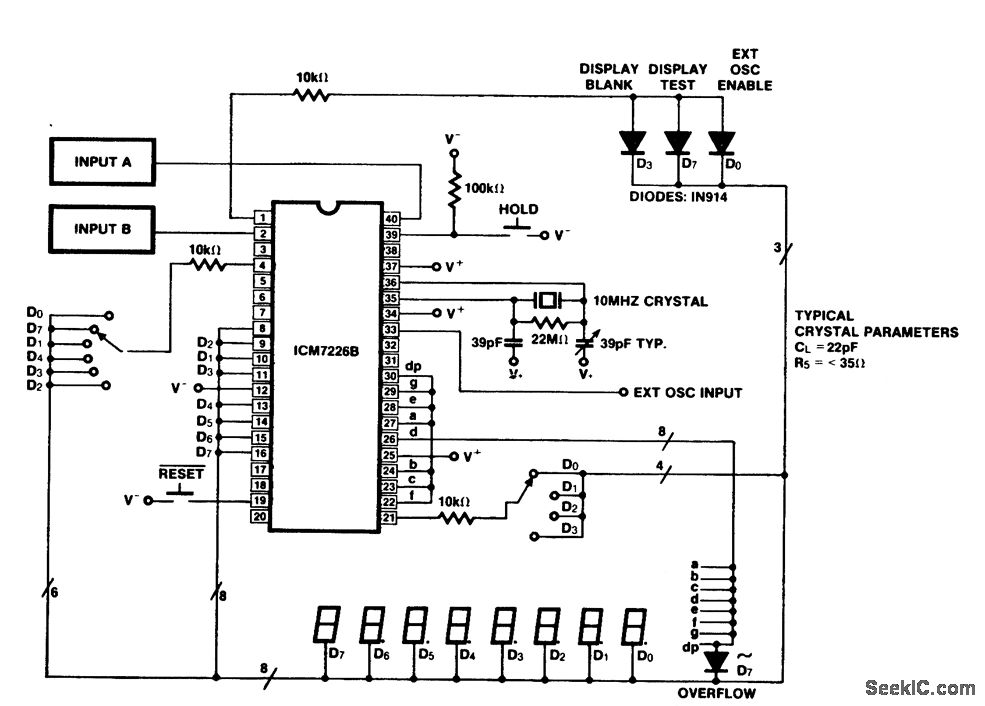

19MHz universal counter using an Intersil ICM7226B 40-pin DIP. This circuit measures frequencies at input A up to 10 MHz and at input B up to 2 MHz (courtesy Intersil, Inc.).
