16_channel_sequential_differential_mux_demux

Published:2009/7/23 22:19:00 Author:Jessie | From:SeekIC

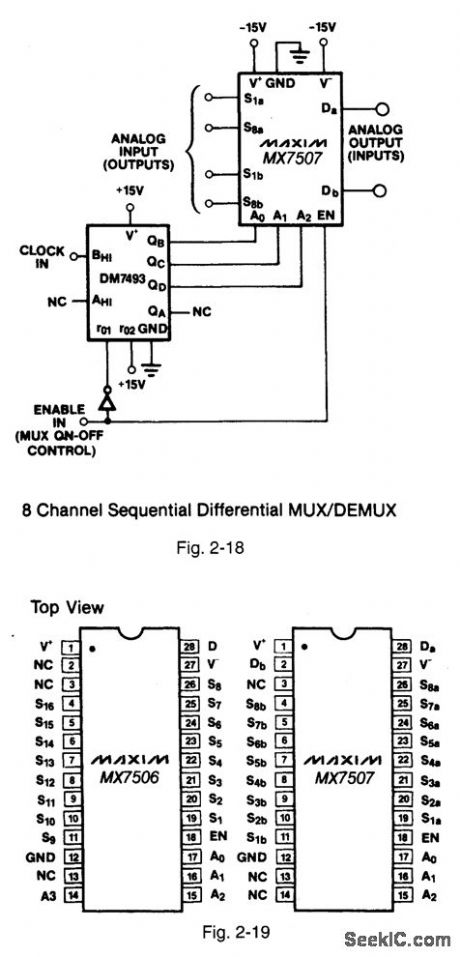

Figures 2-18 and 2-19 show a typical application circuit and pin configurations, respectively, for the MAX7506/07. This circuit is similar to that shown in Fig. 2-17, but with 16-channel operation. MAXIM HIGH-RELIABILITY DATA Book, 1993, P. 1-49.
