12_BIT_DAC

Published:2009/6/22 23:52:00 Author:Jessie | From:SeekIC

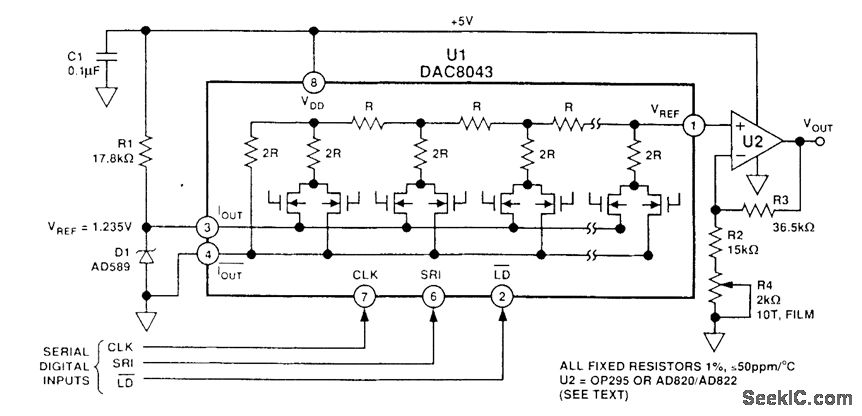

This circuit uses an Analog Devices DAC-8043 12-bit multiplying DAC The output will be D/4096×Vref where D is the numerical value of the digital input word（0 to 4095） Vref is 1.235 volts in this cicuit
