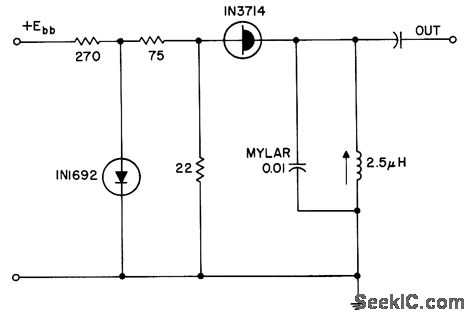

Uses mylar capacitor as main temperature sensing element, with temperature coefficient of 0.5 kc/℃, in tunnel-diode oscillator that translates temperature changes into frequency changes.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 350.
