10-way infrared sequence remote control circuit

Published:2011/7/9 10:02:00 Author:Lena | Keyword: 10-way, infrared, sequence, remote control | From:SeekIC

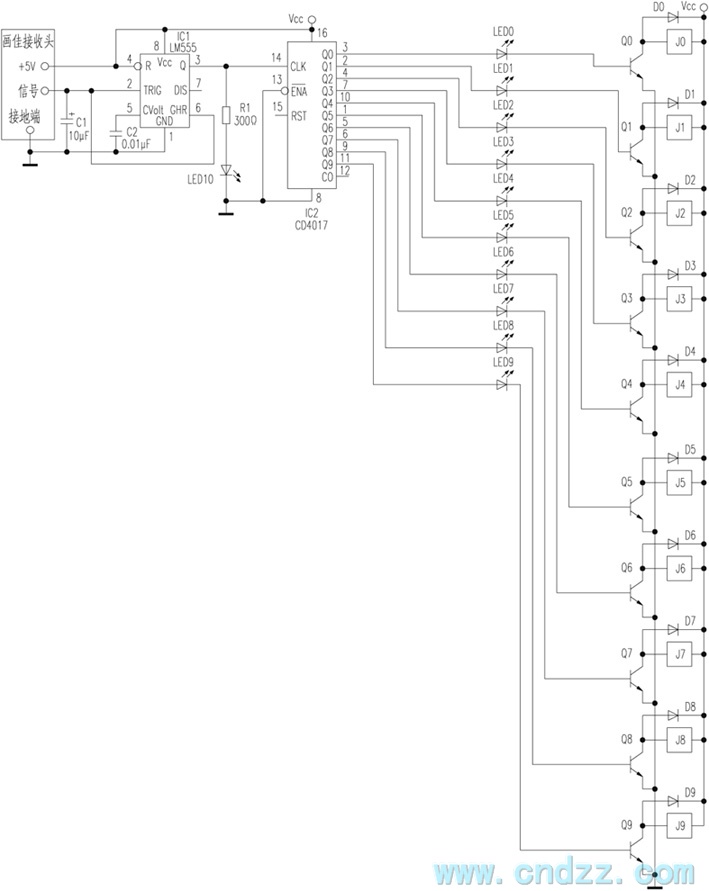

Here introduces a kind of infrared remote control emitter using common household appliance to control 10-way sequence remote control and display circuit. Remote control emitter can adopt usual color TV, video tape recorder , air-condition etc kinds of infrared remote control emitters. So in the manufacture process, we only need product infrared receptor circuit. Infrared receptor circuit mainly consists of integrated infrared receptor apex, NE555 and CD4017 etc integrated circuit, the remote control distance can reach about 15 meters.The circuit is shown in the figure.
