UM9114 microcomputer dialing integrated circuit diagram

Published:2011/5/16 2:43:00 Author:Nicole | Keyword: microcomputer, dialing | From:SeekIC

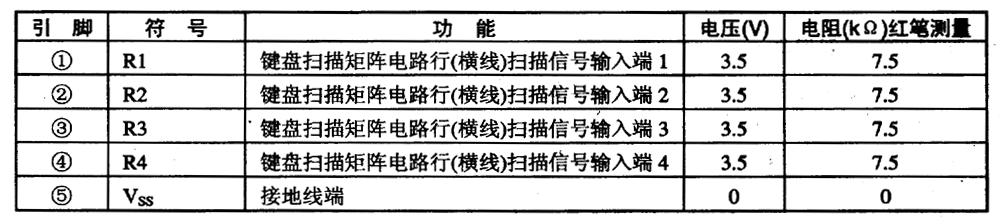

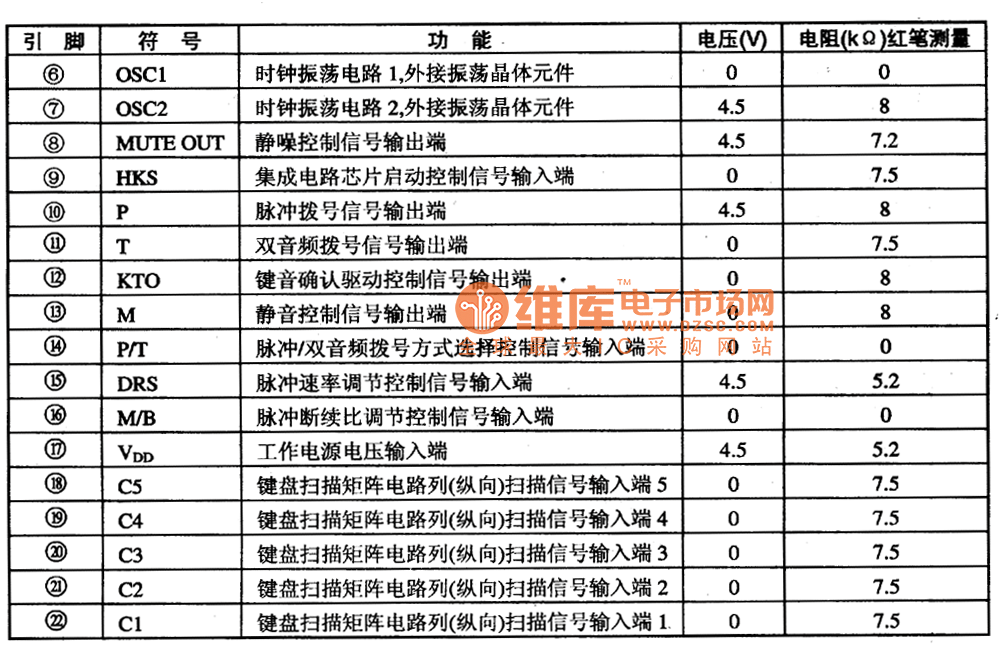

UM9114 is a microcomputer dialing integrated circuit, it is used in all kinds of telephone circuit of communication. UM9114 integrated circuit adopts 22-foot dual in-line package, the pin function and data of this integrated circuitare shown in the table 1-1.
