TMP87PM36N single-chip microcomputer integrated circuit diagram

Published:2011/5/6 3:21:00 Author:Ecco | Keyword: single-chip , microcomputer , integrated circuit | From:SeekIC

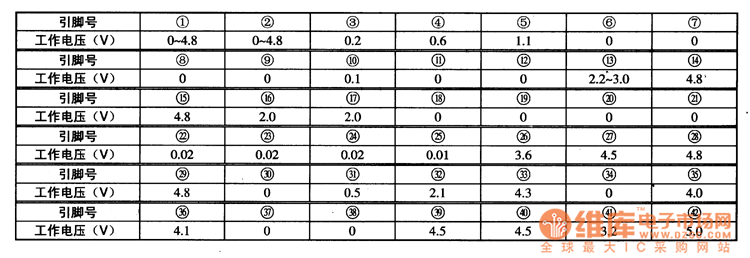

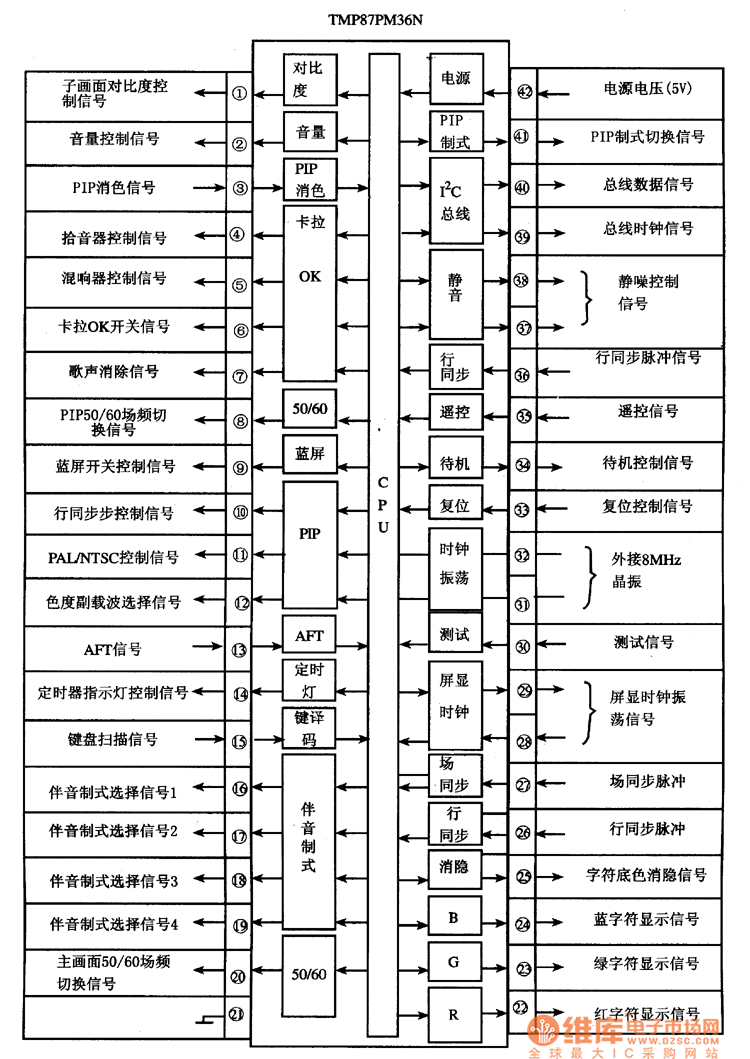

TMP87PM36N is the single-chip microcomputer integrated circuit produced by Toshiba, it is widely used in Konka, Changhong, Toshiba, and other series of large-screen color TV. TMP87PM36N integrated circuit uses dual 42-pin package, the internal block circuit diagram and pin functions and signal flowing are shown in Figure 1, the typical operating voltage is listed in Table 1. Figure 1 shows the block circuit diagram and pin functions and signal flowing of TMP87PM36N integrated circuit. Table 1 shows the typical operating voltage of TMP87PM36N integrated circuit.
