TMP87C766 monolithic microcomputer integrated circuit diagram

Published:2011/5/9 1:05:00 Author:Ecco | Keyword: monolithic , microcomputer integrated circuit | From:SeekIC

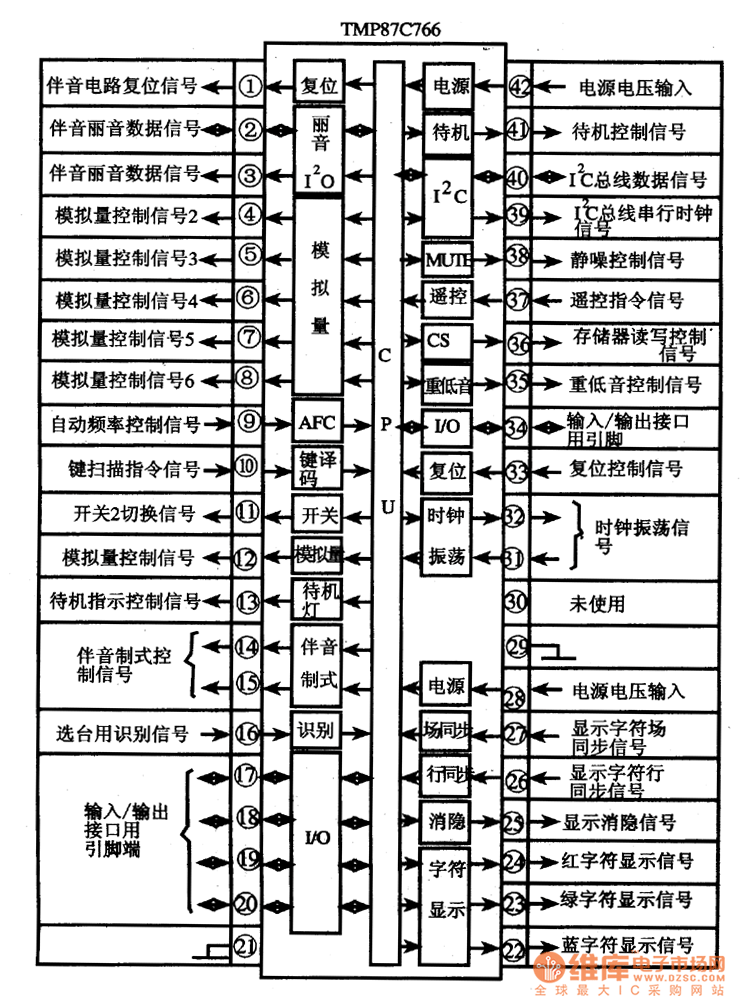

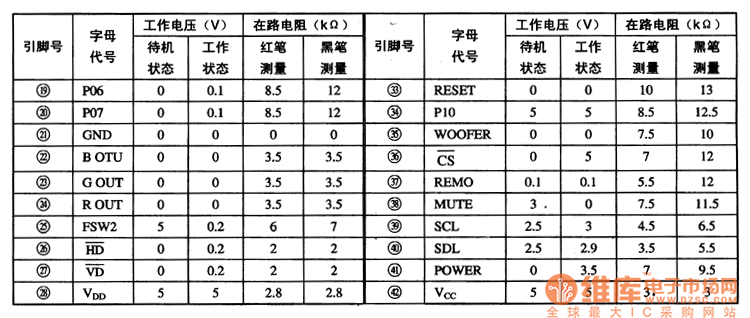

TMP87C766 is the single-chip microcomputer integrated circuit produced by Toshiba, it is widely used in Changhong, Konka, TCL series of movement and assembly of large-screen color TV. 1. Features of functionsTMP87C766 integrated circuits is mainly composed of the central processing (CPU), clock oscillator circuit, reset control circuit, I2C bus control circuit, key scan decoding circuit, the character display circuit,memory control circuitry, input / output (I / O) interface circuit, the clock oscillation circuit, the characters display the clock circuit, and other auxiliary functions circuit.2. Pin functions and data TMP87C766 integrated circuit uses the plastic package with 42 feet in double rows, the pin functions and signal flowing are shown in Figure 1, the pin letter code and data are listed in Table 1.
