PT2124 fan monolithic microcomputer integrated circuit diagram

Published:2011/5/6 1:36:00 Author:Ecco | Keyword: fan , monolithic, microcomputer, integrated circuit | From:SeekIC

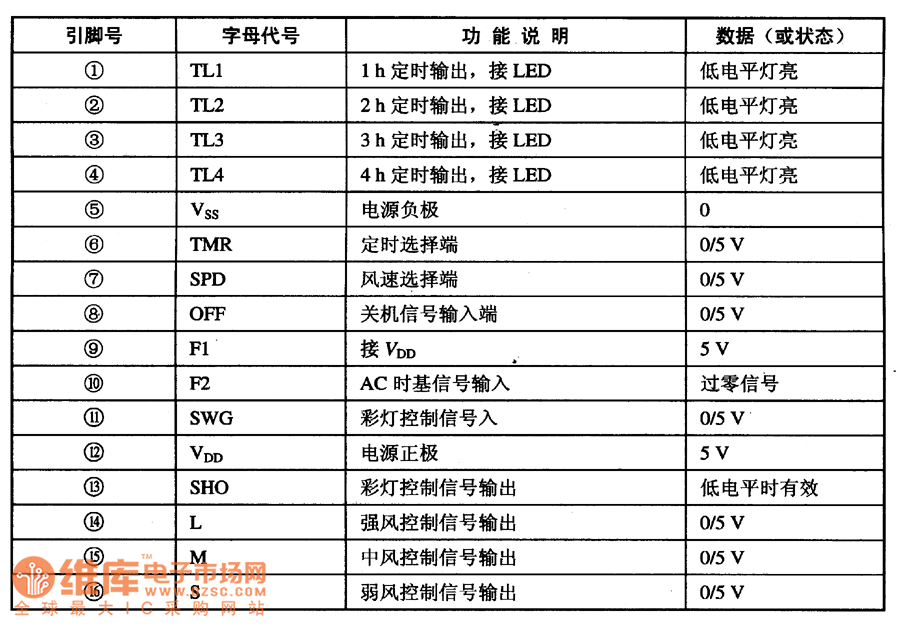

PT2124 is a fan single-chip microcomputer integrated circuit, which is widely used in fans and a variety of speed or power adjustment of small household appliances. PT2124 IC uses the package with 16-pin in double row, working voltage is 3 ~ 6V, quiescent current is 100μA, output current of SCR trigger is 7.6mA. The pin functions and data are listed in Table, the typical application circuit is shown as the chart. PT2124 IC pin functions and data The typical application circuit of PT2124 IC
