PCA84C840P-054 Single-chip microcomputer integrated circuit diagram

Published:2011/4/27 21:38:00 Author:Ecco | Keyword: Single-chip , microcomputer, integrated circuit | From:SeekIC

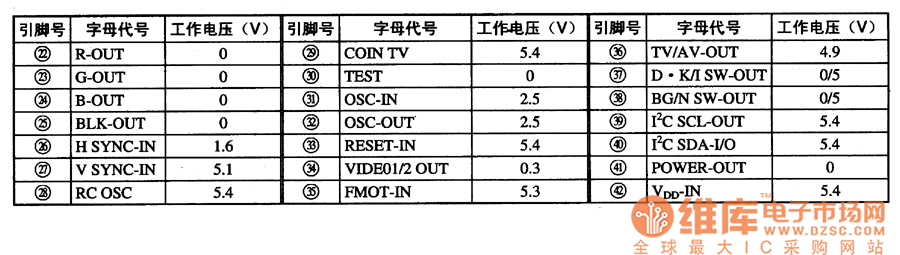

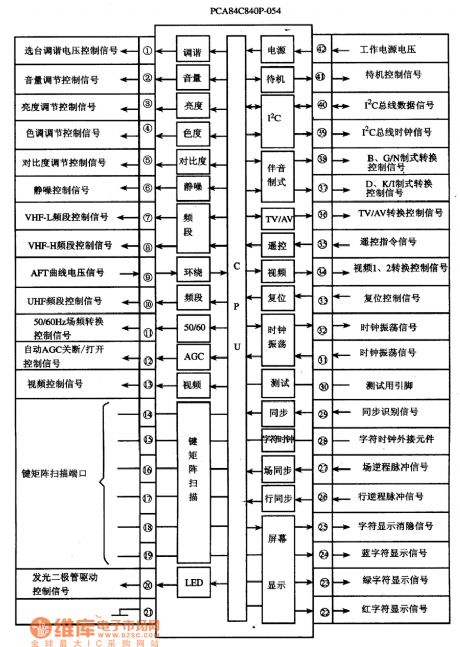

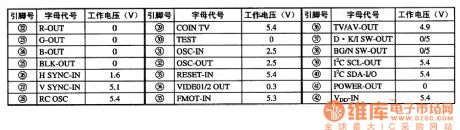

PCA84C840P-054 is a single-chip microcomputer integrated circuit manufactured by Philips, it is widely used in domestic and imported large screen color television with Philips machine assembly. PCA84C840P-054 IC uses 42-foot double row style package, the internal circuit block diagram and pin functions and signal flowing are shown as the chart, the pin code and data is listed in the table.
