DIY computer infrared interface

Published:2011/9/18 22:32:00 Author:Ecco | Keyword: DIY, computer, infrared interface | From:SeekIC

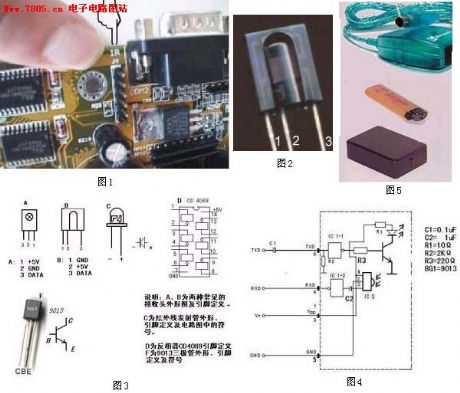

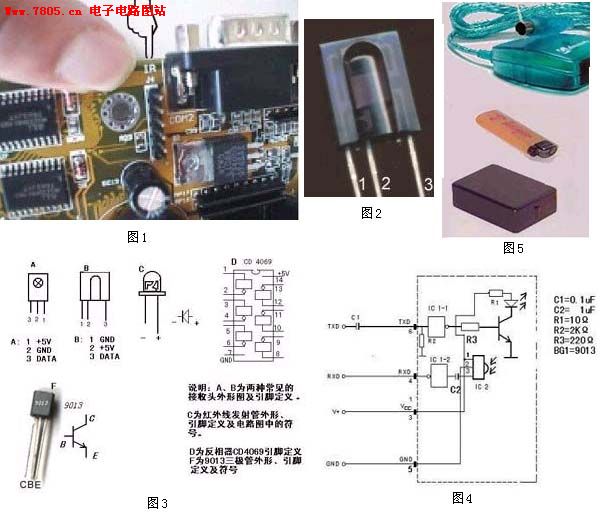

A, B are 2 common contact, outline drawing and pin definition. C is the infrared emission tube shape, pin definition and schematic symbol. CD4069 is the pin definition of inverter pin, and F is the 9013 transistor shape, pin definitions and symbol.
