FM surveillance BuG Transmitter

Published:2012/9/13 20:50:00 Author:Ecco | Keyword: FM surveillance BuG , Transmitter | From:SeekIC

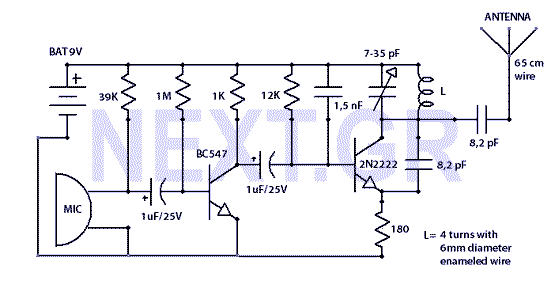

The Circuit shown can transmit voice to exceptionally good range. Tune trimmer to hear the signal to your near radio. Frequency range is 88-108 MHz. Max current consumption is 30mA. You can power the bug with a 9Volt Battery, or you can plug a power supply to feed in 9-12 Volts. Source: NEXT.GR
