VIDEO_MONITOR_TERMINATOR

Published:2009/7/14 21:43:00 Author:May | From:SeekIC

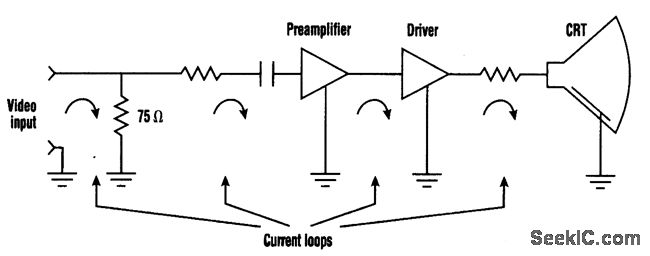

The best method of terminating video output signals is to route the video cable directly to the video-amplifier input connector without connecting its signal or shield wires to other parts of the monitor.
