ULTRASONIC_REMOTE_CONTROL_RECEIVER

Published:2009/6/17 23:10:00 Author:May | From:SeekIC

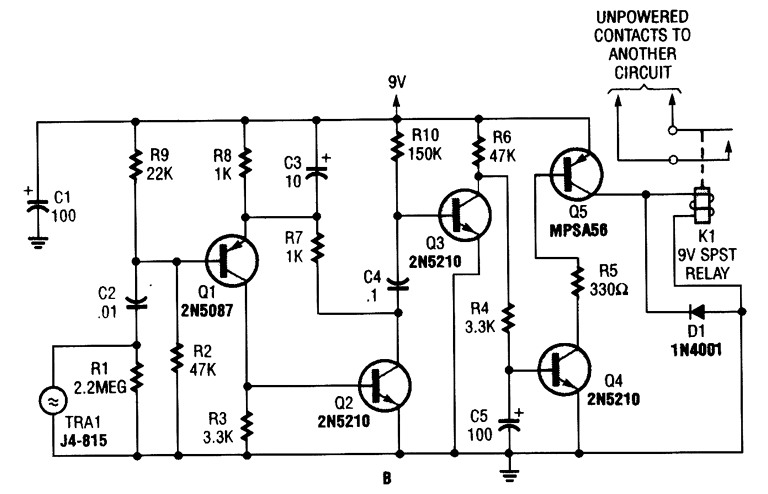

A GC Electronics P/N J4-815 transducer is used to receive nals. The receiver drives a relay for control of another circuit.
