Transmitting and receiving wireless calls ward display circuit (M303S/M303R)

Published:2011/10/18 1:50:00 Author:Rebekka | Keyword: Transmitting and receiving, wireless calls , ward display | From:SeekIC

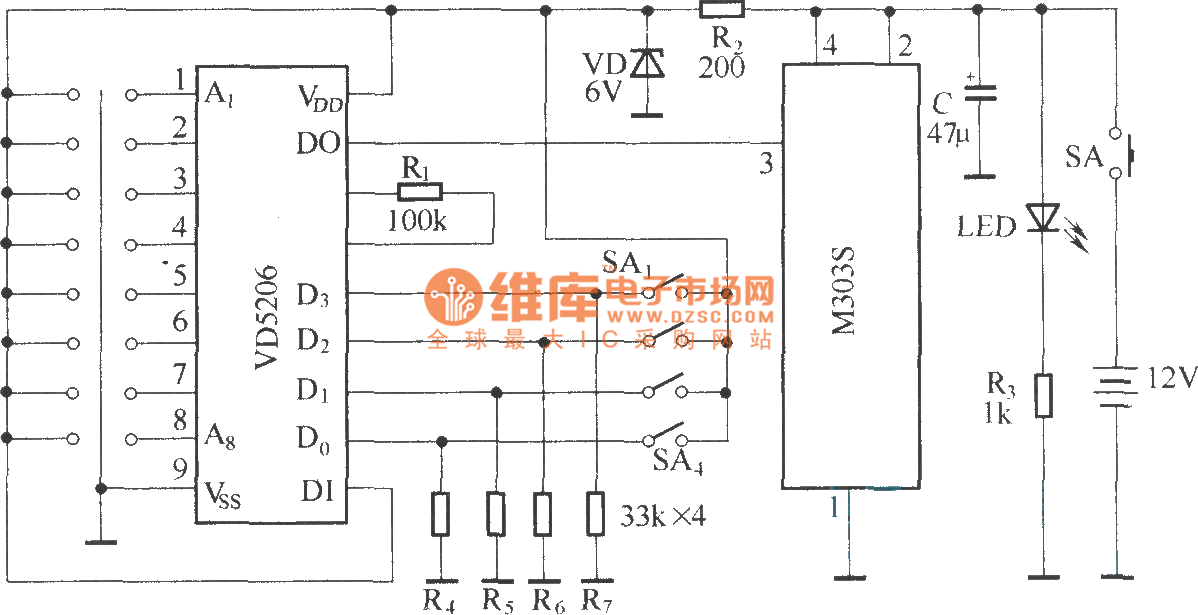

This circuit uses the wireless transmission and digital radio transceiver module M303S/M303R with stable performance, digital decoders VD5026/VD5027. It is stable and reliable to display the call number or room number of beds. It is easy to install. RF transmission power of the circuit is very small. It does not affect the normal operation of medical equipment. Ward Wireless call system is composed of wireless calling transmitter set in ward and radio receiver display set in care duty room. The circuit is shown as below. Monitors radio receiver circuit is shown as below.
