The wires off/on detection circuit of Santana 2000GLi

Published:2011/5/16 19:50:00 Author:Borg | Keyword: detection circuit, Santana | From:SeekIC

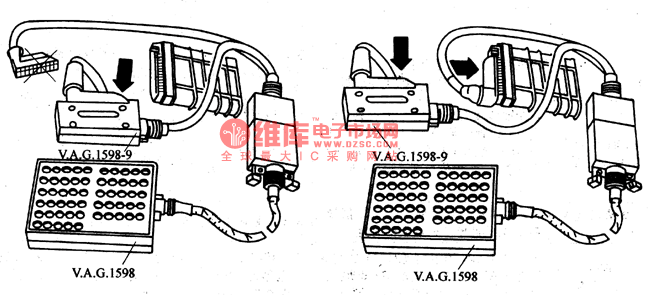

When we engage in the detection job, we should connect the box V .A Gl598 and cables V .A .G1598-9 to the connector of the wire bundles, but let the computer of line. (1)shut down the igniting switches and pull off the connector of the engine control computer, then connect the box V .A Gl598 and cables V .A .G1598-9 to the control wires of the engine computer, by which we detect whether the circuit is off or short (computer is not connected).(2)Shut down the igniting switch and connect the box V .A Gl598 and cables V .A .G1598-9 to the engine control computer, by which we detect the voltage between the sensor and each terminal of the computer.
