The starting and power supply circuit of Santana(chassis No. 3ZMP003182)

Published:2011/5/14 23:32:00 Author:Borg | Keyword: power supply, Santana | From:SeekIC

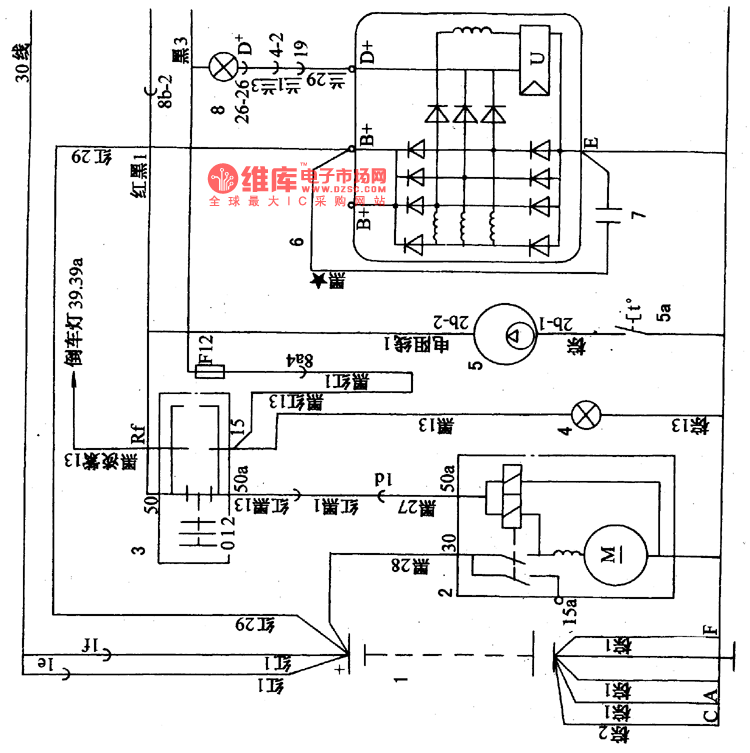

1-battery; 2-starter; 3-starting interlocking switch; 4-gear position indicator(with auto transmission); 5-fuel tank electrical pump; 5a-cold starting temperature control switch; 6-integrate alternator; 7-radio filter capacitor; 8-charging indicator; 9-power supply system relay; 10-oil assistance pump; 11-oil pump; 12-igniting switch; 13-jet resistance; 14-Ⅰjar jet; 15-jet resistance; 16-IV jar jet; 17-jet resistance; 18-Ⅱjar jet; 19-jet resistance; 20-Ⅲ jar jet
