The control system self-detection circuit of 2000GLi engine

Published:2011/5/16 11:08:00 Author:Borg | Keyword: control system, Santana | From:SeekIC

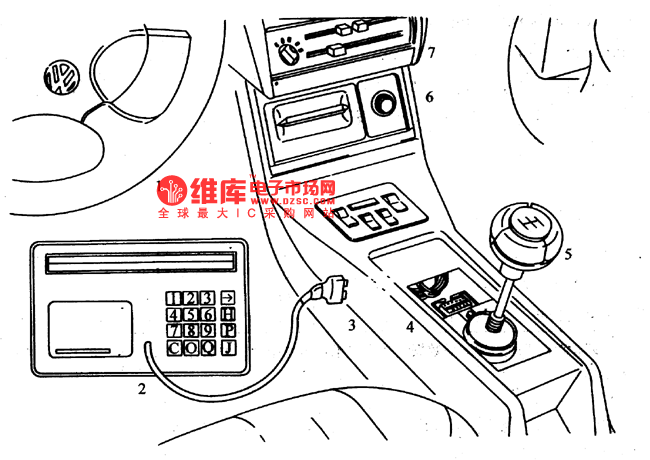

V.A.G1551 fault diagnosis equipment can not only do test on the electric spray engines of Red Flag, Jetta, Golf and Passat, but also can do the job to the engines of Santana. The car should have these conditions if we want use the equipment: the would be detected engines must have been run for a needed time, the coolant temperature need to be more than 7℃, batteries are normal, fuses are good and the ground connection of the engine is OK. 1-steer; 2-VACI551 fault diagnosis equipment; 3-the power supply plug of the equipment; 4-the outlet of the equipment.
