TOROIDAL_TRANSFORMER

Published:2009/7/13 3:56:00 Author:May | From:SeekIC

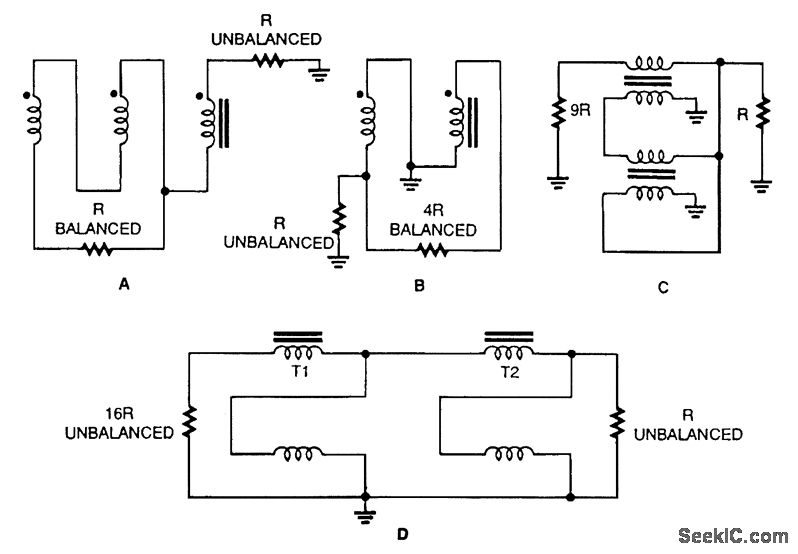

The several types of impedance matching transformers are∶1:1 baiun (A).4:1balun (B).9:1 unun (C).and 16:1 un-un (D)
