TEMPERATURE_TO_FREQUENCY_CONVERT_ER

Published:2009/7/8 5:29:00 Author:May | From:SeekIC

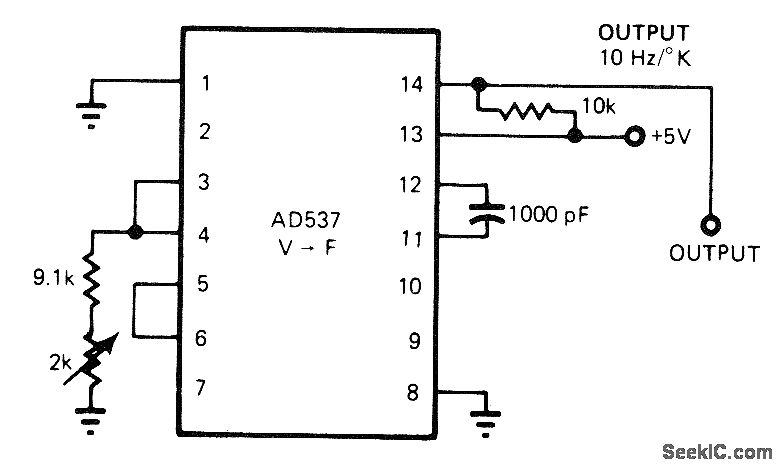

Temperature sensor on chip of AD537 voltage-to-frequency converter IC minimizes number of external parts needed. Output frequency changes 10 Hz for each degree (kelvin or Celsius) change in temperature.-J. Williams, De-signer's Guide to: Temperature Measurement, EDNMagazine, May 20, 1977, p 71-77.
