SAA3006 general infrared remote control launch circuit

Published:2011/7/20 7:38:00 Author:Christina | Keyword: general, infrared, remote control, launch circuit | From:SeekIC

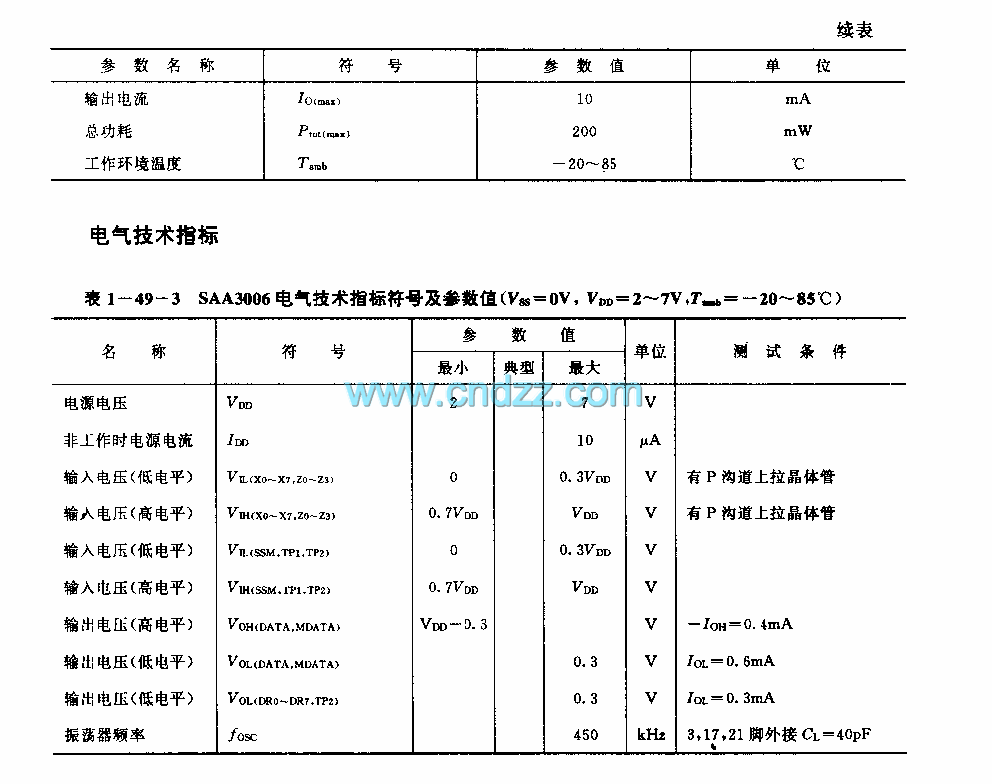

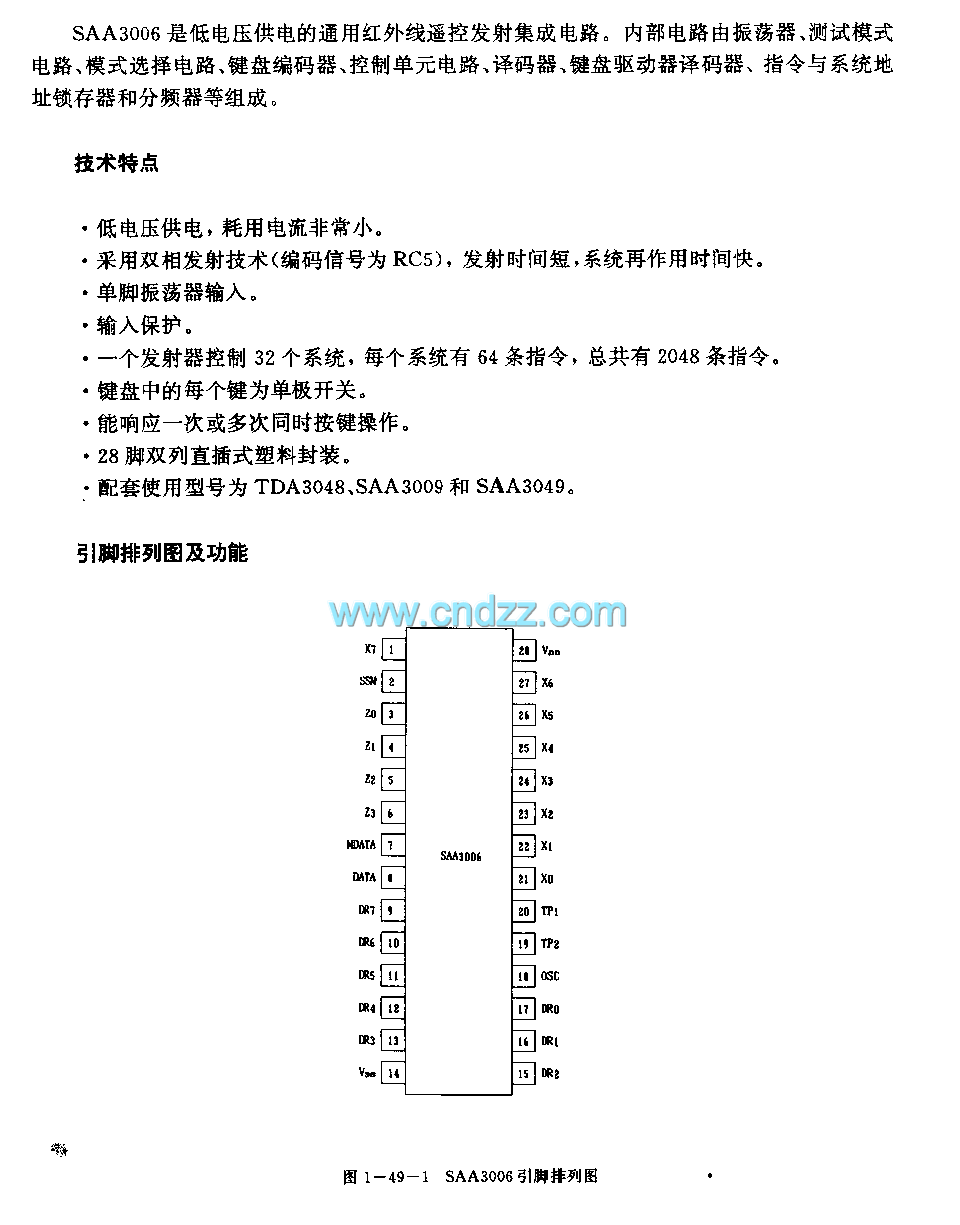

The SAA3006 is designed as one kind of low voltage power supply general general infrared remote control launch circuit. The internal circuit is composed of the oscillator, the test mode circuit, the mode selection circuit, the keyboard encoder, the control unit circuit, the decoder, the keyboard driver decoder, the instruction and system address latch and the frequency divider. Features Low voltage power supply, the power consumption is very small,It uses the dual-phase launch technology, the launch time is short,The single pin oscillator input,the input protection,Every launcher controls 32 systems, every system has 64 instructions,Every button of the keyboard is the single-pole switch,28-pin dual-row DIP plastic package,The matching model are TDA3048, SAA3009 and SAA3049.
