Receiver circuit used with the 50kHz FM transmitter

Published:2011/6/22 18:55:00 Author:TaoXi | Keyword: Receiver, circuit, 50kHz, FM, transmitter | From:SeekIC

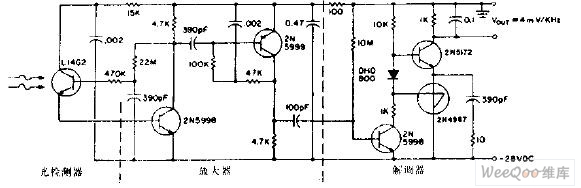

This circuit is composed of a L14G2 detector, the two stages amplifier and a frequency modem, it can be used in the multi-level amplifier which has the automatic gain control to get high sensitivity.
