PULSE_FREQUENCY_MODULATED_IR_TRANSMITTER

Published:2009/6/19 4:21:00 Author:May | From:SeekIC

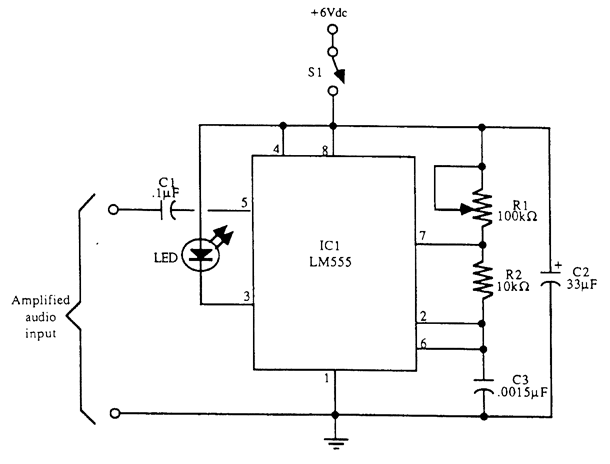

Schematic diagram for the pulse frequency-modulated LED transmitter. Adjust the frequency by rotating R1. With components shown, the frequency range is between 8 and 48 kHz.
