PULSE_COMMAND_MONITOR

Published:2009/7/19 22:06:00 Author:Jessie | From:SeekIC

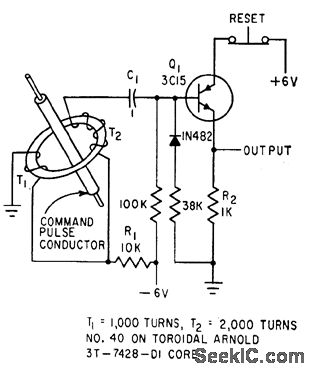

Toroid in control electrode circuit of solid-state thyratron Q1 triggers circuit on when command pulse passes through insulated conductor, without affecting command circuit for such critical functions as arming of missile.-R. C. Wright, Collecting Data from Live Missiles in Flight, Electronics, 34:12, p 46-49.
