Temperature Controller (the 4th)

Published:2011/7/5 10:22:00 Author:Felicity | Keyword: Temperature Controller (the 4th) | From:SeekIC

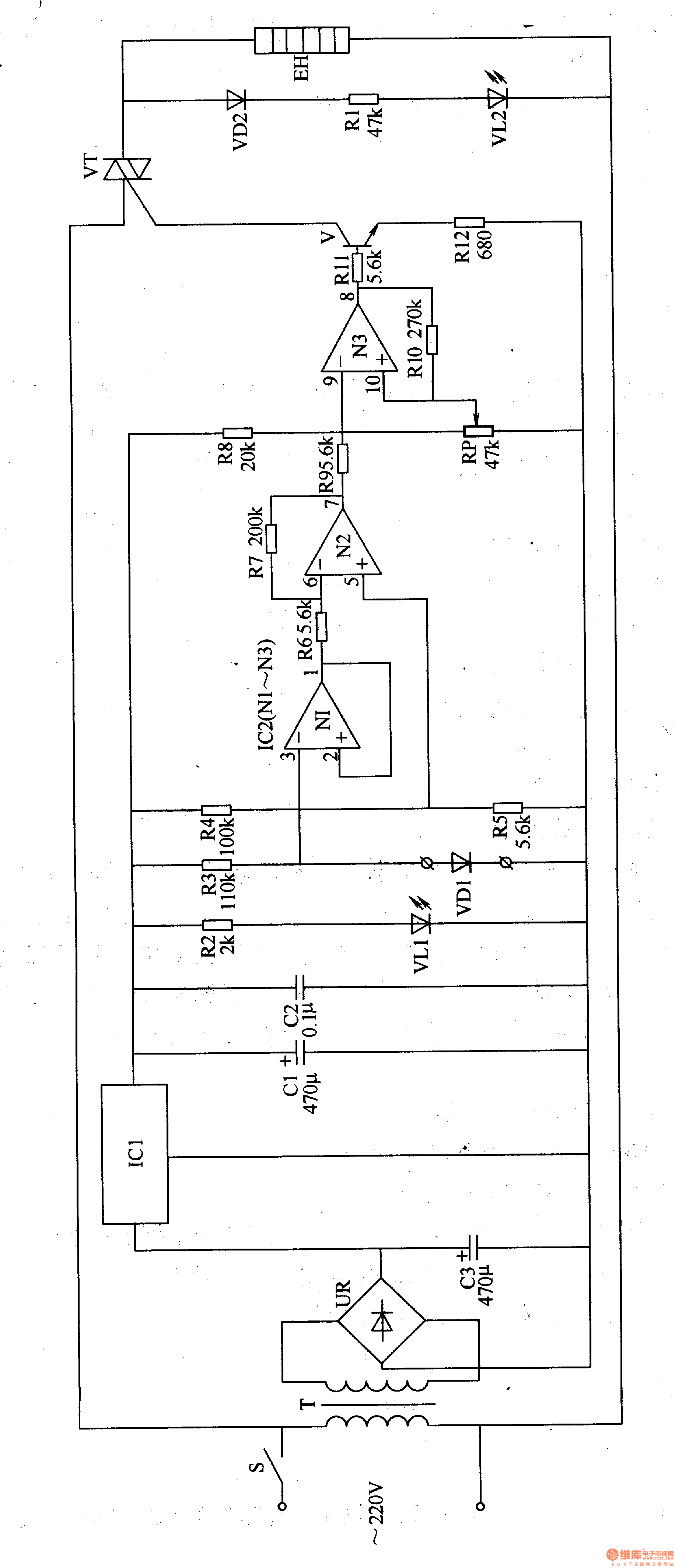

Work of the circuit The circuit consists of power circuit, control implementation circuit and temperature detection and control circuit. (It is showed in picture 8-108.) Power circuit consists of power switch S, the power transformer T, rectifier bridge pile UR. Filter capacitors C1-C3, three-terminal voltage regulator integrated circuit ICl, resistor R2 and the power indicator LED VLl. Control implementation circuit consists of Resistor RlI, Rl2, transistor V and thyristor VT. Temperature detection and control circuit consists of temperature detection diode VDl, resistors R3-RlO, operational amplifier integrated circuit IC2 (Nl-N3) and potentiometer RP.
