ONE_TUBE_REGENERATIVE_SW_RECEIVER

Published:2009/6/24 4:23:00 Author:May | From:SeekIC

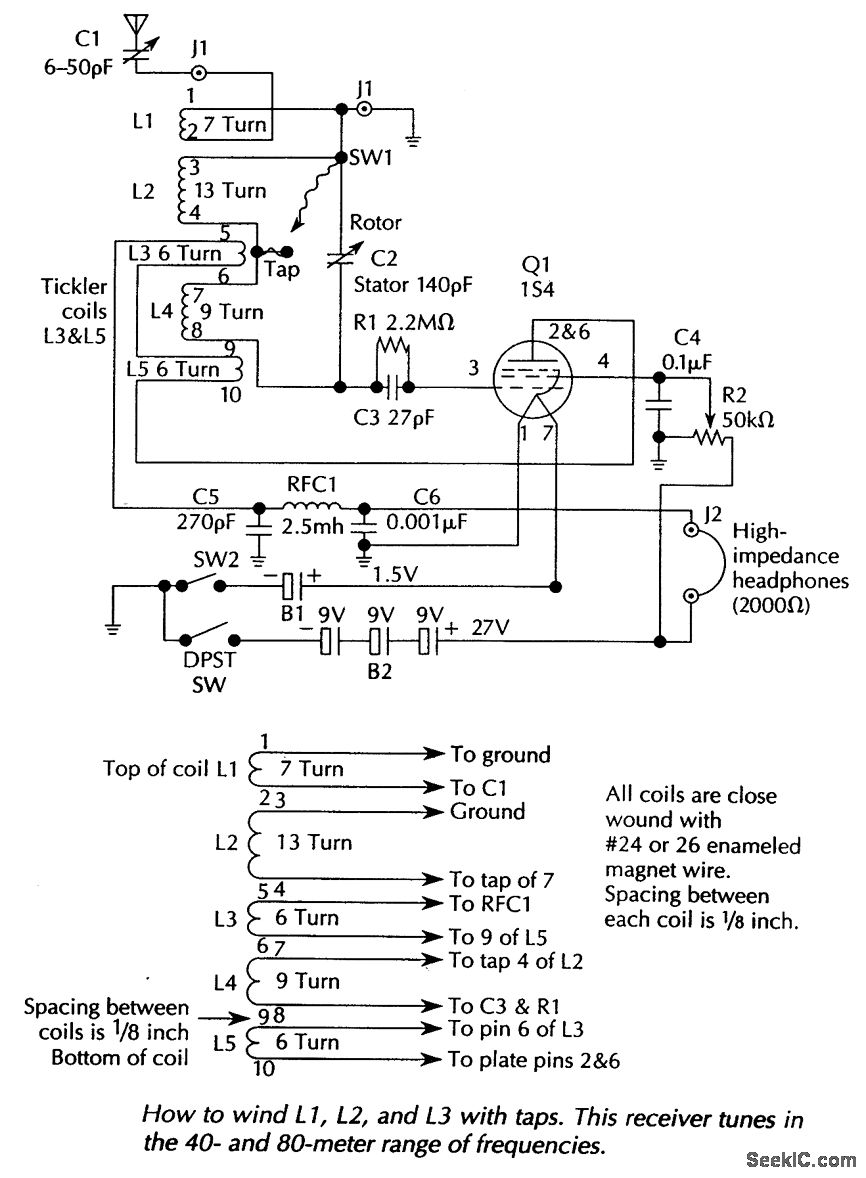

A 154 tube is used in a regenerative detector circuit. Details for coils are shown and frequency range can be shifted within 1.5 to 20 MHz by proportionally adjusting the number of tums on coils
