LOW_POWER_INFRARED_DATA_LINK_RECEIVER

Published:2009/6/19 4:11:00 Author:May | From:SeekIC

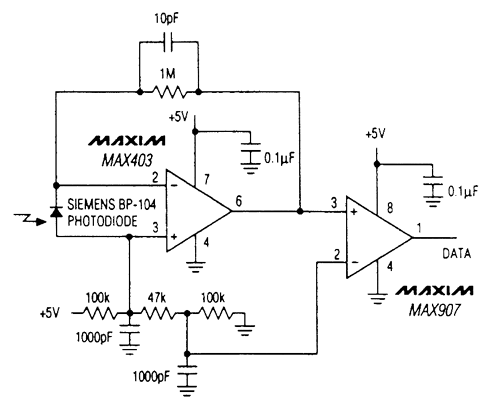

The Maxim MAX403 in this circuit consumes only 1 mA and is capable of speeds over 1 MBPS.
