LOW_COST_BEACON_TRANSMITTER

Published:2009/7/11 2:01:00 Author:May | From:SeekIC

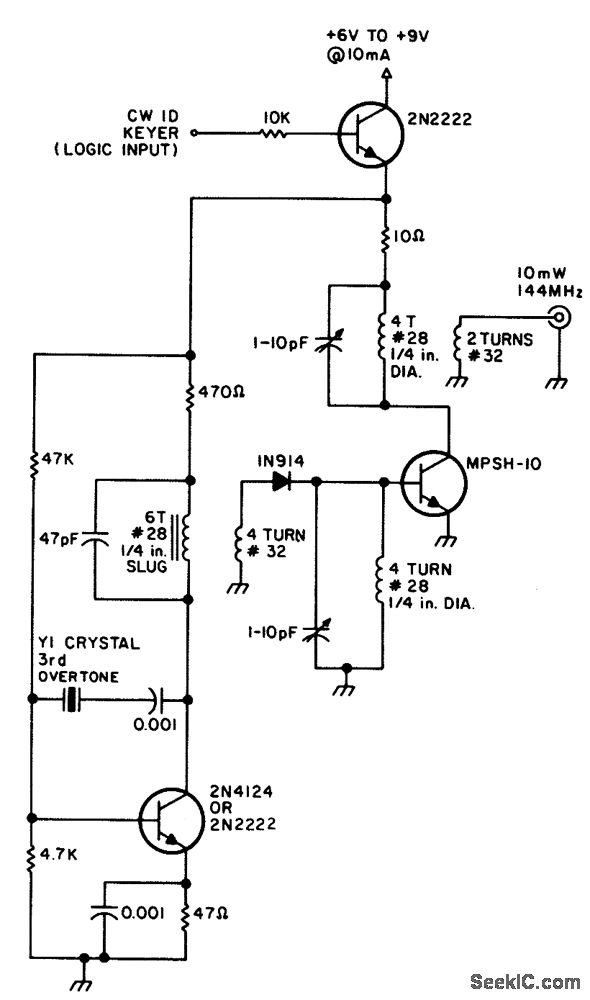

This transmitter uses a 48-MHz crystal oscillator to drive a diode tripler to the 144-MHz amplifier. The output is 5 to 10 mW.
