LOGIC_LEVEL_TRANSLATORS

Published:2009/7/9 22:23:00 Author:May | From:SeekIC

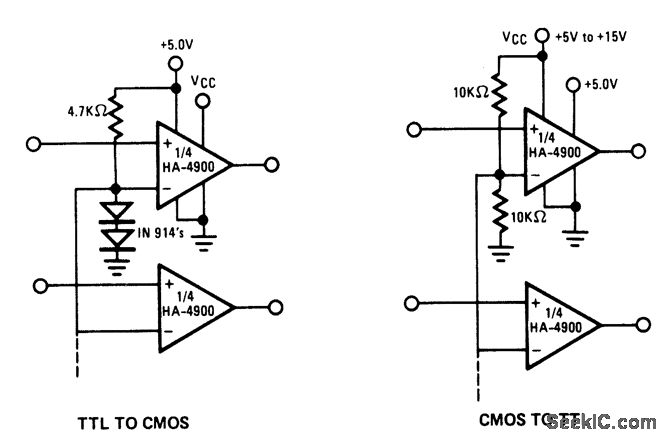

The HA-4900 senes comparators can be used as versatile logic interface devices,as shown in these circuits.Negative logic devices can also be interfaced with appropriate supply connections.If separatesupplies are used for V-and VLOGIC-,these logic-level translators will tolerate several volts of groundline differential noise.
