FOUR_CHANNEL_COMMUTATOR

Published:2009/7/14 0:48:00 Author:May | From:SeekIC

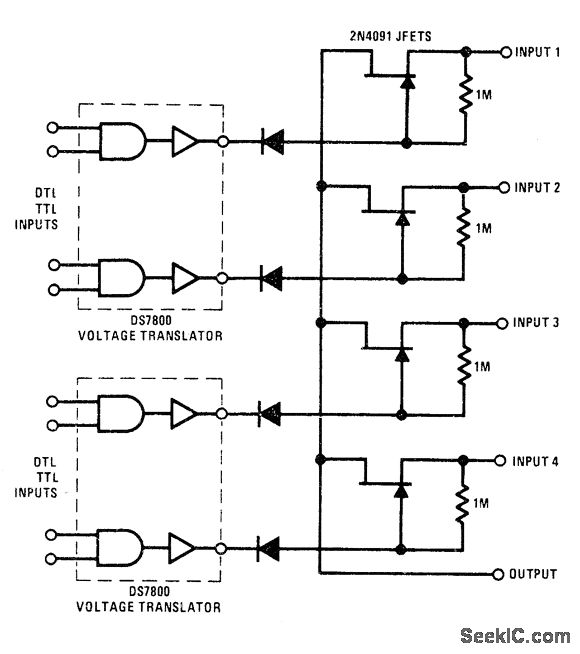

2N401 JFETs give ON resistance of less than 30 ohms for each channel along with low OFF current leakage, DS7800 voltage translators provide gate drives of 10 V to -20 V for JFETs while giving DTL/TTL compatibility, - FET Databook, National Semiconductor, Santa Clara, CA, 1977, p 6-26-6-36.
