EXPERIMENTAL_DATA_TRANSMITTER_FOR_FIBER_OPTICS

Published:2009/6/19 1:45:00 Author:May | From:SeekIC

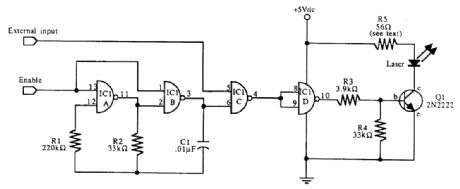

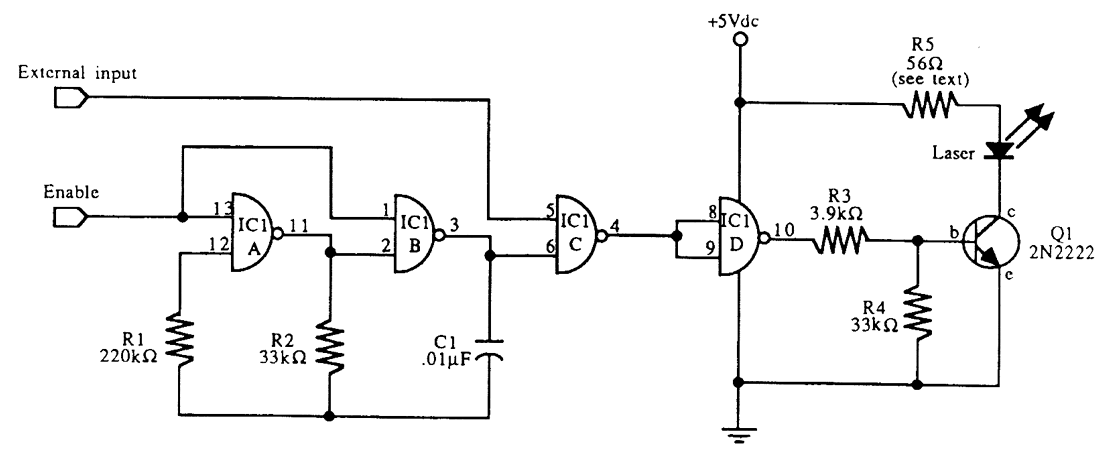

This schematic for an experimental data transmitter uses optical fibers and a laser diode. Trans-mission frequency of the free-running oscillator is approximately 3 kHz. R5 might have to be varied to suit your laser diode. IC1 is a CD4093.
