ENERGY_LOSS_TELESCOPE

Published:2009/7/19 22:05:00 Author:Jessie | From:SeekIC

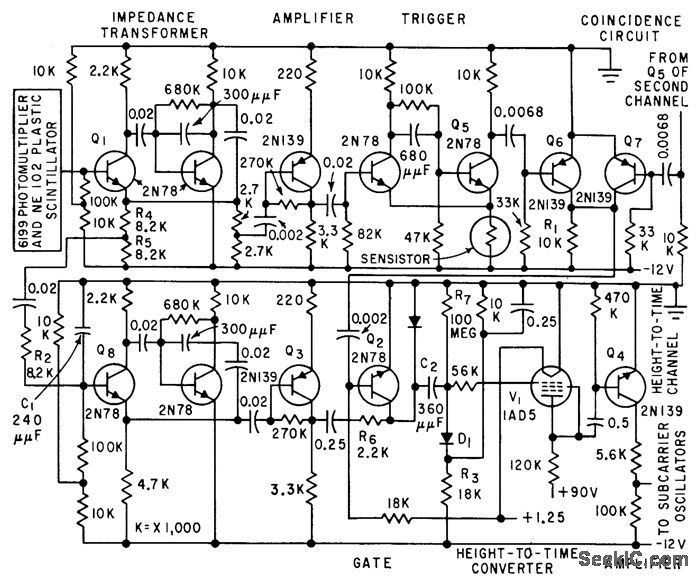

Uses sensistors to help compensate for temperature effects. Circult normally employs two identical channels for the two multiplier phototubes, to drive coincidence circuit that feeds height-to-time converter.-D. Enemark, Balloon-Borne Circuits Sort High. Altitude Cosmic Rays, Electronics, 32:35, p 52-55.
