DMAl2 Formation picture

Published:2011/4/14 1:31:00 Author:muriel | Keyword: Formation picture | From:SeekIC

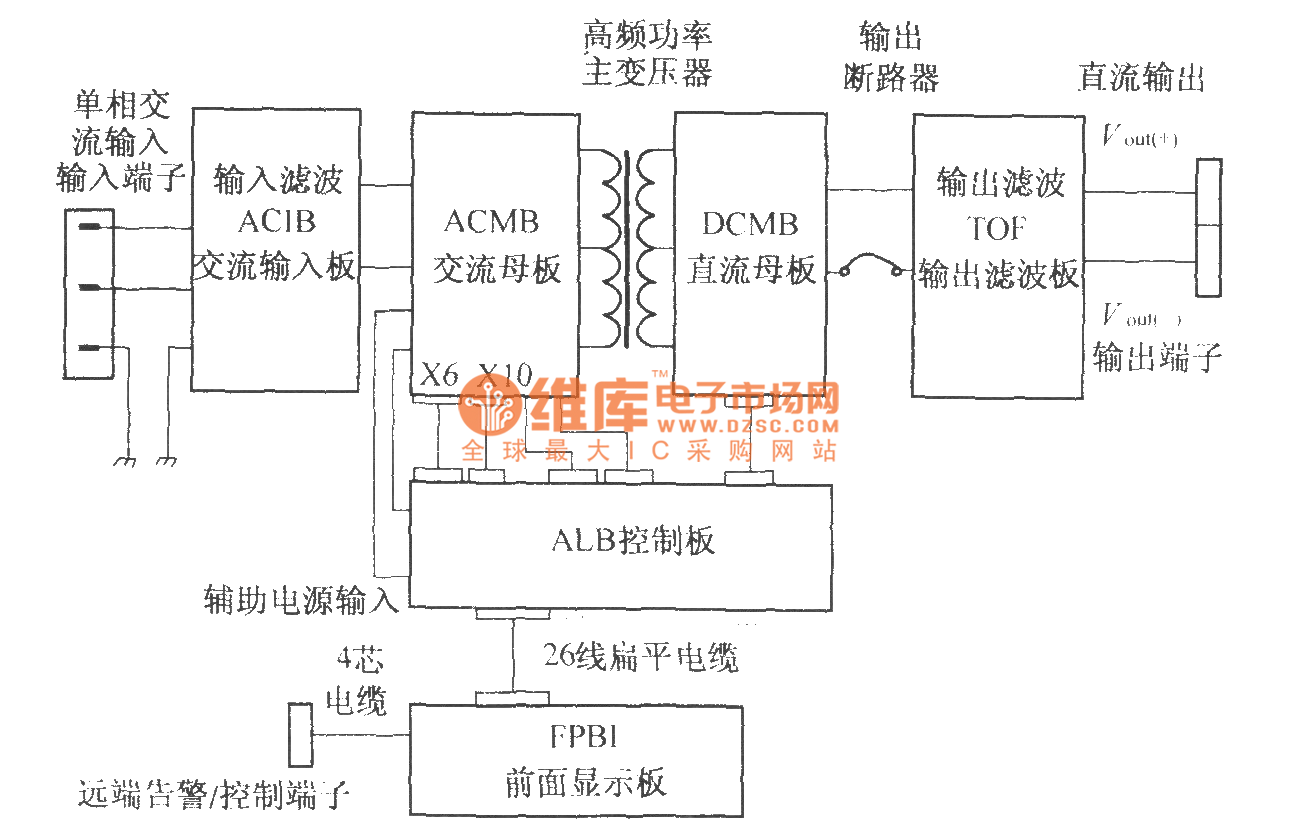

DMA12 intelligent switch Rectifier Module are composed of the ACIB, ACMB, DCMB, TOF, ALB, FPBI.There are a total of six printed board and input and output plugs, circuit breakers, inductors and transformers and other components, as shown.
