DIRECT_CONVERSION_7_MHz_RECEIVER

Published:2009/6/23 Author:May | From:SeekIC

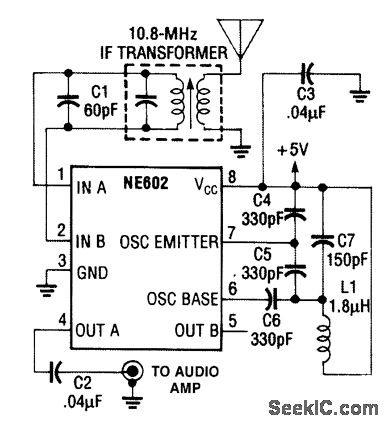

An NE602 is used to mix signals in the 7-MFlz range with an LO and to produce audio output.
