BINARY_WITH_STEERING_CIRCUIT_TRANSISTOR

Published:2009/7/13 22:12:00 Author:May | From:SeekIC

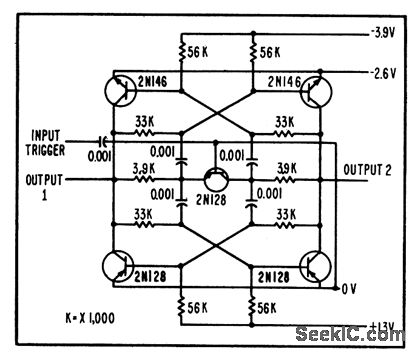

Input goes to steering transistor that replaces two back-to-back diodes normally used to drive bases of binary transistors through capacitive coupling. For-transistor binary flip-flop reduces total quiescent drain on batteries.-R.W. Rochelle. Cyclops Cores Simplify Earth-Satellite Circuits. Electronics.31:9,p56-63．
