ACOUSTIC_SOUND_RECEIVER

Published:2009/7/10 21:13:00 Author:May | From:SeekIC

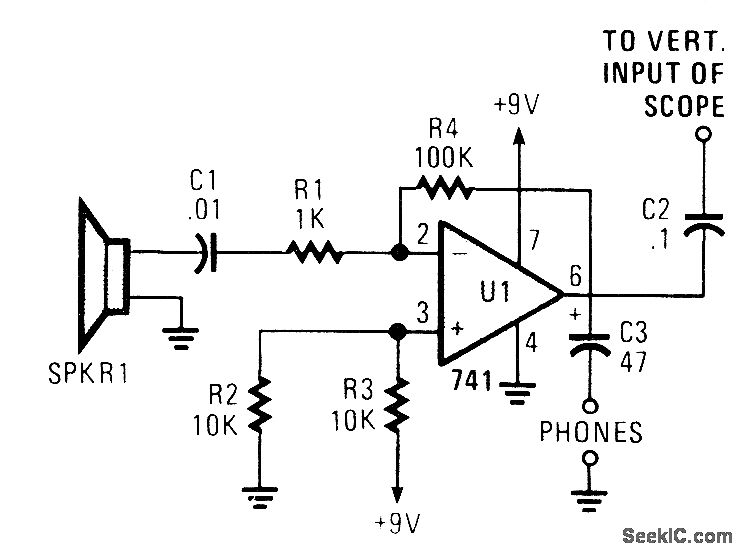

The receiver is an audio amplifter fed by SPKR1, a piezo speaker that is used as a microphone. A scope or headphones can be used as a detector. The scope can be triggered horizontally by the transmitted acoustic pulse; the vertical display can be used to drive the delay time, and hence the distance.
