5_W_FET_TRANSMITTER

Published:2009/7/6 23:41:00 Author:May | From:SeekIC

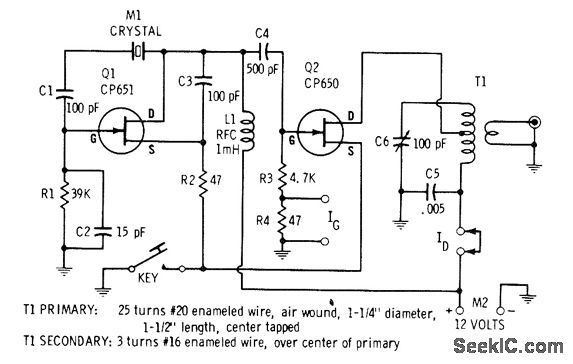

Vaiues shown give operation in 40-meter amateur band. Drain of resonant tank circuit.-E. M. Noll, FET Principles, Experiments, and Projects, Howard W.Sams, Indianapolis, IN, 2nd Ed., 1975, p 188-power FET Q2 is connected to tap on primary of 189.
